鍍鋁膜軟管

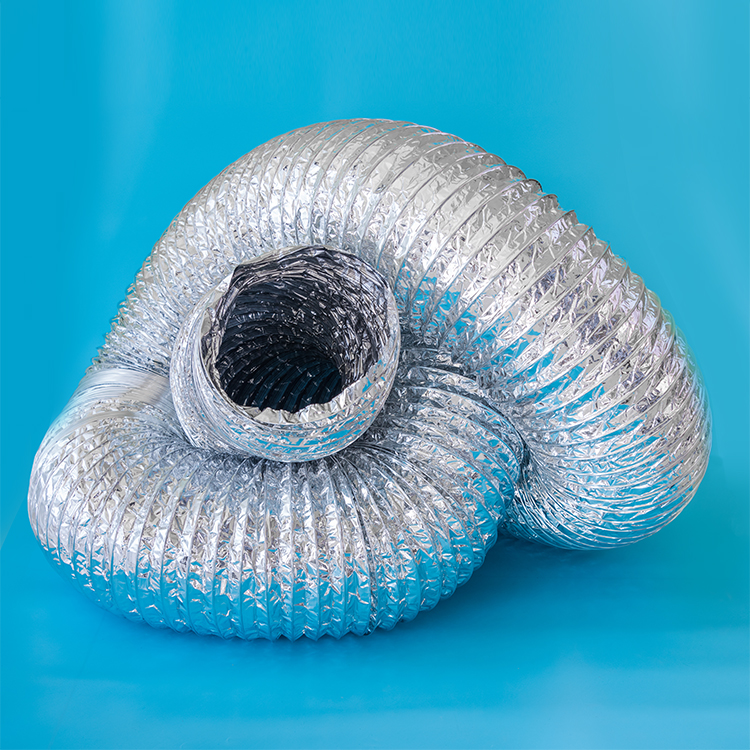

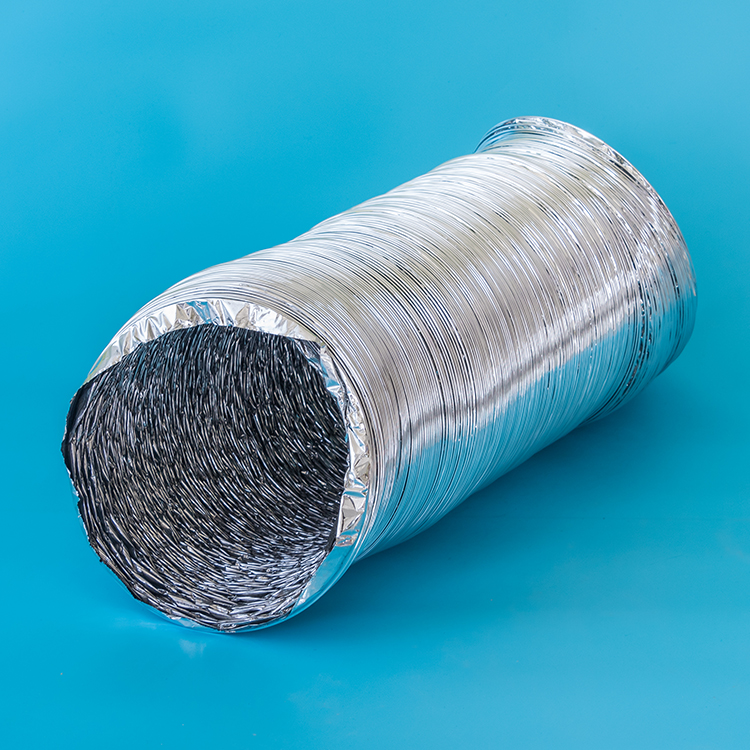

VMPET Aluminum Flexible Duct

鍍鋁膜軟管

Product Code	XY-104	產品編碼	XY-104
Construction	1 VMPET Aluminum Foil + 1 PET	材料	1層鍍鋁膜+1層PET
Color	Both sides silver/outer silver,inside black	顏色	雙面銀色/外銀色，內黑色
AvailableDiameter	40mm-650mm (1.5"-25")	直徑范圍	40mm-650mm (1.5"-25")
Carbon Steel Wire Diameter	0.6mm-2.5mm	鋼絲直徑	0.6mm-2.5mm
StandardLength	10m(Max)	標準長度	10m(Max)
Thickness	0.025mm-0.027mm	厚度	0.025mm-0.027mm
Fire Resistance	ClassB1	防火等級	B1級，阻燃
CompressRatio	1: 25	壓縮比	1：25
Temperature Range	-30℃/+150℃	溫度范圍	-30℃/+150℃
Operating Pressure	3000Pa	最大壓力	3000Pa
Maximum Air Velocity	30m/s	最大風速	30m/s

鍍鋁膜伸縮軟管采用鍍鋁膜復合膜繞帖高彈性螺旋形強韌鋼絲制作而成。

拉直后自持性好、風阻小、清潔衛生，遇到高溫或火警時，不產生有毒氣體，適用于高、中、低壓的空調及通風系統，安裝便捷。

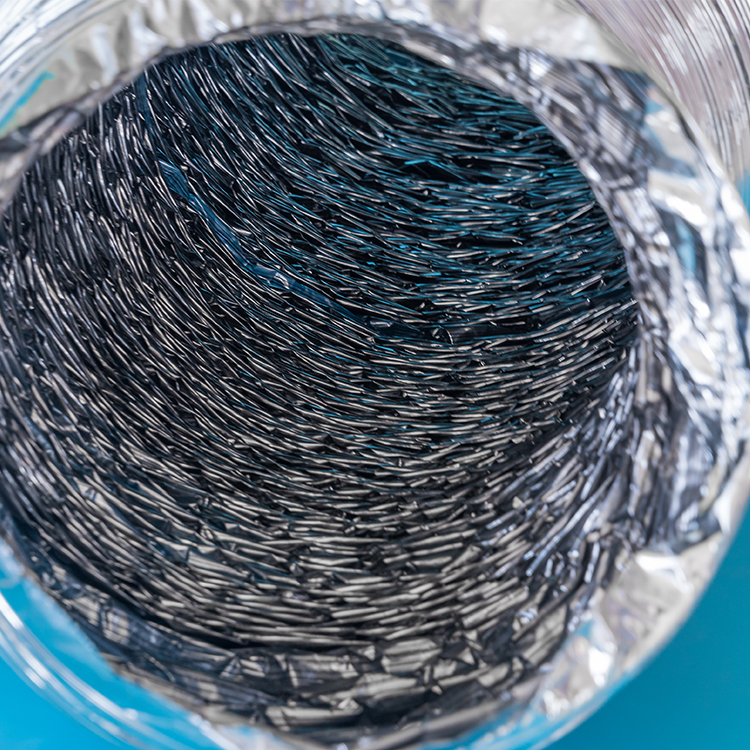

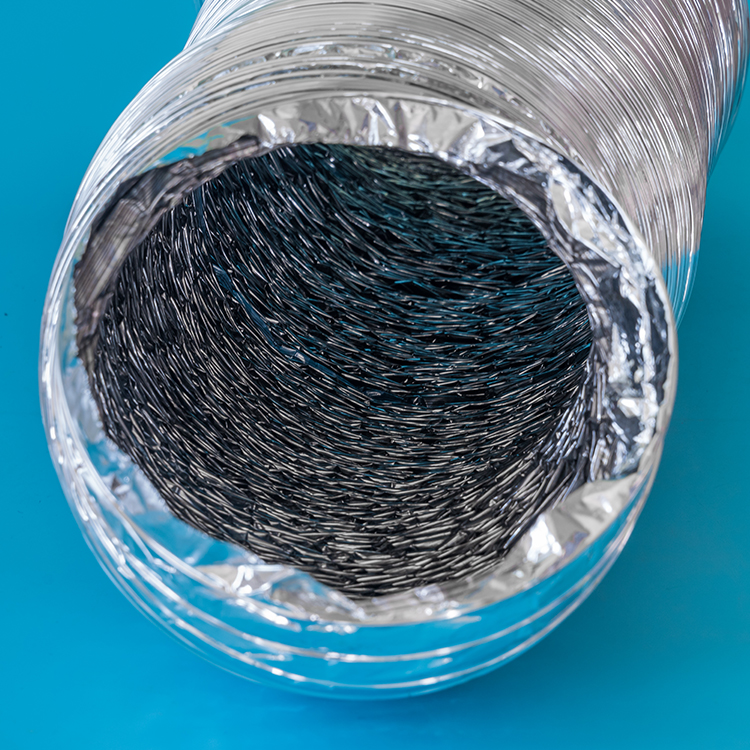

Made of spiral steel wire laminated with VMPET Aluminum foil.

Self-holding during usage and low wind resistance.

No toxic gases release at high temperature or in the case of fire alarm.

Ideal for using in general purpose exhaust applications.
